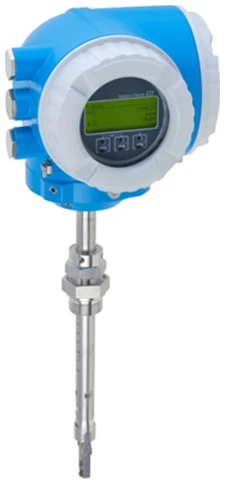

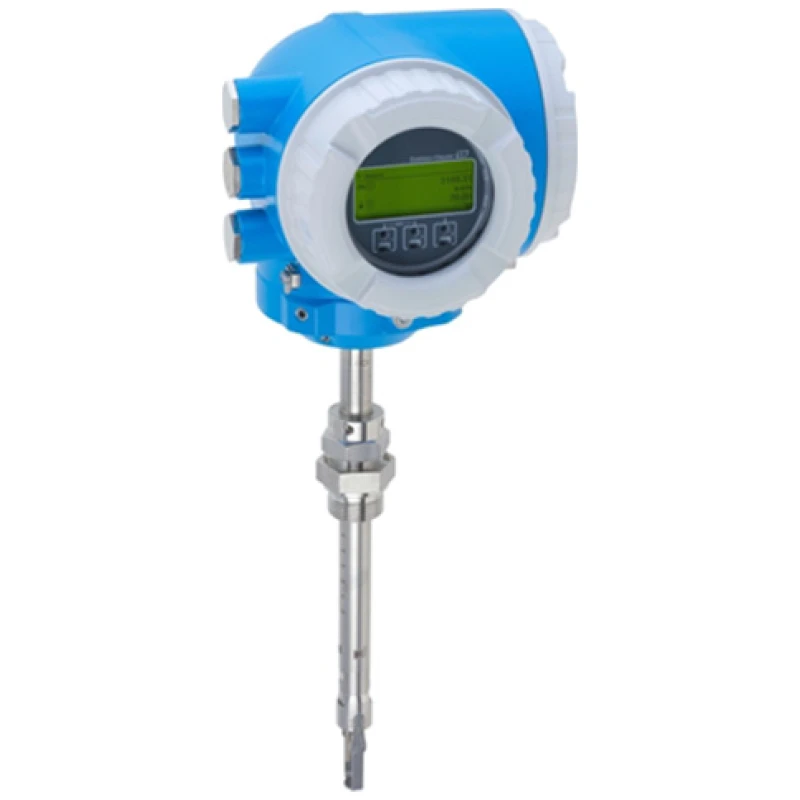

E+H Proline T-Mass I 300 Thermal Mass Flow Meter

Name: E+H Proline T-Mass I 300 Thermal Mass Flow Meter - scs-instrument
Brand: Endress+Hauser
SKU: Proline t-massI300

The E+H Proline T-Mass I 300 Thermal Mass Flow Meter is crafted for precise measurement of gases in industrial applications. It utilizes thermal dispersion technology to deliver accurate readings of mass flow, independent of pressure and temperature variations. Ideal for industries like chemical processing and energy management, it features robust construction, easy installation, and comprehensive diagnostics for efficient process monitoring.

GET A QUOTE

Category: Thermal Mass Flow Meters Tag: Endress+Hauser

Description

E+H Proline T-Mass I 300 Thermal Mass Flow Meter

The Endress+Hauser Proline T-Mass I 300 is a premium thermal mass flow meter featuring a patented sensor design that provides unprecedented measurement stability. This insertion-style flowmeter delivers real-time compensation for changes in process conditions including temperature, pressure, flow direction, and gas type. The device combines advanced sensor technology with a compact, easily accessible transmitter offering flexible operation and system integration capabilities.

Key Features

Advanced Technology

Patented drift-free sensor with SIL 2 certification
Heartbeat Technology for continuous diagnostics
Bidirectional measurement capability
Flexible programming with 21 standard gases
WLAN access and remote display options

Performance Excellence

Direct mass flow measurement
Gas accuracy: 1.0% of reading (10-100% of scale)
High measuring range: 20 to 733,501 kg/h
Real-time process condition compensation
Premium measurement accuracy and repeatability

Specifications and Parameter Details

Parameter	Specification
Measuring Range	20 to 733,501 kg/h (44 to 1,669,340 lb/h)
Line Size Range	DN 80 to 1500 (3 to 60″)
Temperature Range	-40 to +180°C (-40 to +356°F)
Process Pressure	-0.5 to 20 bar g (-7.25 to 290 psi g)
Wetted Materials	Insertion tube: 316L stainless steel Sensing element: 316L/Alloy C22 Process connections: 316L
Output Options	4-20 mA HART (active/passive) Pulse/frequency/switch output Relay output
Housing Material	Aluminum AlSi10Mg, coated Polycarbonate
Protection Rating	IP66/67, Type 4X enclosure

Applications

Process Industries

Utility gas measurement
Process gas monitoring
Gas mixture applications
Circular piping systems
Rectangular duct installations

Technical Documentation

The Endress+Hauser Proline T-Mass I 300 represents the pinnacle of thermal mass flow measurement technology, delivering unmatched accuracy and reliability for critical gas applications. For expert guidance on Flow Meters, Thermal Mass Flow Meters, and Endress+Hauser products, trust scs-instrument. We provide 100% original, factory-new instrumentation to ensure the highest quality and reliability for your applications. Contact our technical team today to discover how our comprehensive range of flow measurement solutions can optimize your process control systems.
