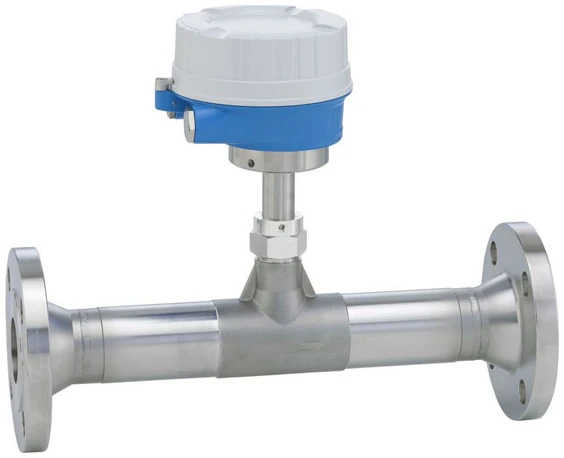

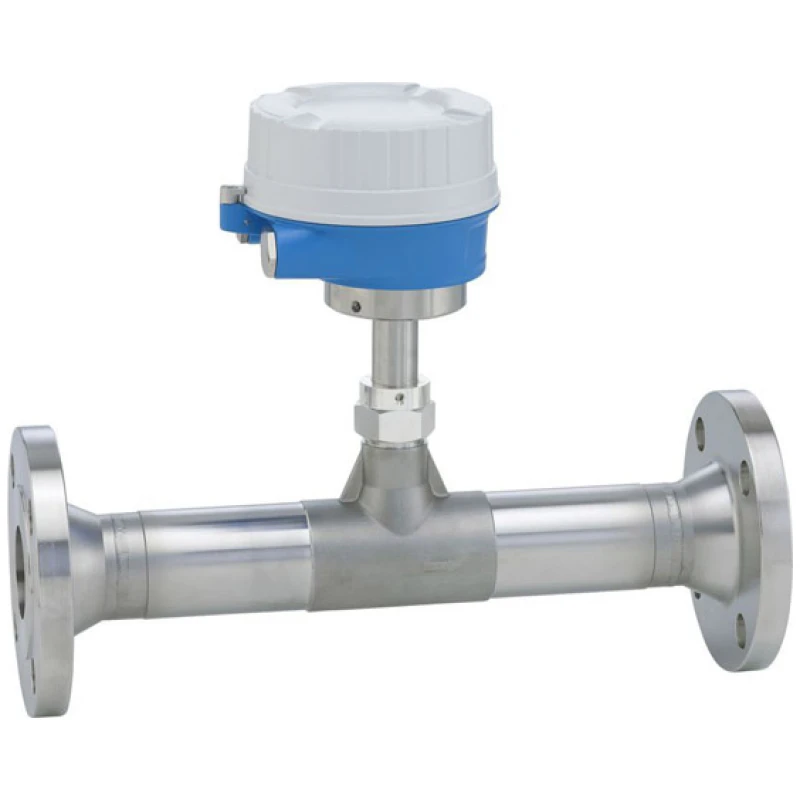

E+H Proline T-Mass F 500 Thermal Mass Flow Meter

Name: E+H Proline T-Mass F 500 Thermal Mass Flow Meter - scs-instrument
Brand: Endress+Hauser
SKU: Proline t-massF500

The T-Mass F 500 utilizes a patented sensor design that ensures long-term measurement stability by compensating in real time for changes in process conditions such as temperature, pressure, flow direction, and gas type. It supports bidirectional measurement and offers high accuracy with a maximum measurement error of ±1.0% for gas flows above 10% of full scale and ±0.1% for lower flows. The device is equipped with Heartbeat Technology, which enhances measurement reliability and allows for compliant verification.

GET A QUOTE

Category: Thermal Mass Flow Meters Tag: Endress+Hauser

Description

E+H Proline T-Mass F 500 Thermal Mass Flow Meter Description

The Endress+Hauser Proline T-Mass F 500 is a premium thermal mass flow meter featuring a patented sensor design that provides unprecedented measurement stability. This inline flow meter delivers real-time compensation for changes in process conditions including temperature, pressure, flow direction, and gas type. With its innovative remote transmitter design and Heartbeat Technology, it maximizes installation flexibility and operational safety in demanding environments.

Key Features

Advanced Technology

Patented drift-free sensor with SIL 2 certification
Heartbeat Technology for continuous diagnostics
Bidirectional measurement capability
Flexible programming with 21 standard gases
WLAN access and touch control display

Performance Excellence

Direct mass flow measurement
Gas accuracy: 1.0% of reading (10-100% of scale)
Premium measurement accuracy and repeatability
Easy maintenance with removable sensor
Up to 4 I/Os in remote version

Specifications and Parameter Details

Parameter	Specification
Nominal Diameter	DN 15 to 100 (½ to 4″)
Measuring Range	0.5 to 3750 kg/h (1.1 to 8250 lb/h)
Temperature Range	-40 to +180°C (-40 to +356°F)
Process Pressure	PN 40, Class 300, 20K
Wetted Materials	DN 15-50: CF3M/1.4408 DN 65-100: 1.4404 (316/316L) Sensing element: 316L/Alloy C22
Output Options	HART or Modbus RS485 Multiple I/O configurations
Protection Rating	IP66/67, Type 4X enclosure IP68, Type 6P sensor (optional)

Applications

Process Industries

Utility gas measurement
Process gas monitoring
Gas mixture applications
Small line size installations
Industrial gas systems

Technical Documentation

The Endress+Hauser Proline T-Mass F 500 represents the pinnacle of thermal mass flow measurement technology, delivering unmatched accuracy and reliability for critical gas applications. For expert guidance on Flow Meters, Thermal Mass Flow Meters, and Endress+Hauser products, trust scs-instrument. We provide 100% original, factory-new instrumentation to ensure the highest quality and reliability for your applications. Contact our technical team today to discover how our comprehensive range of flow measurement solutions can optimize your process control systems.
