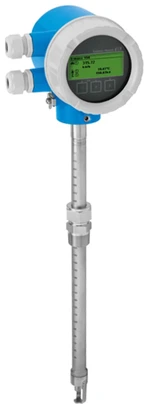

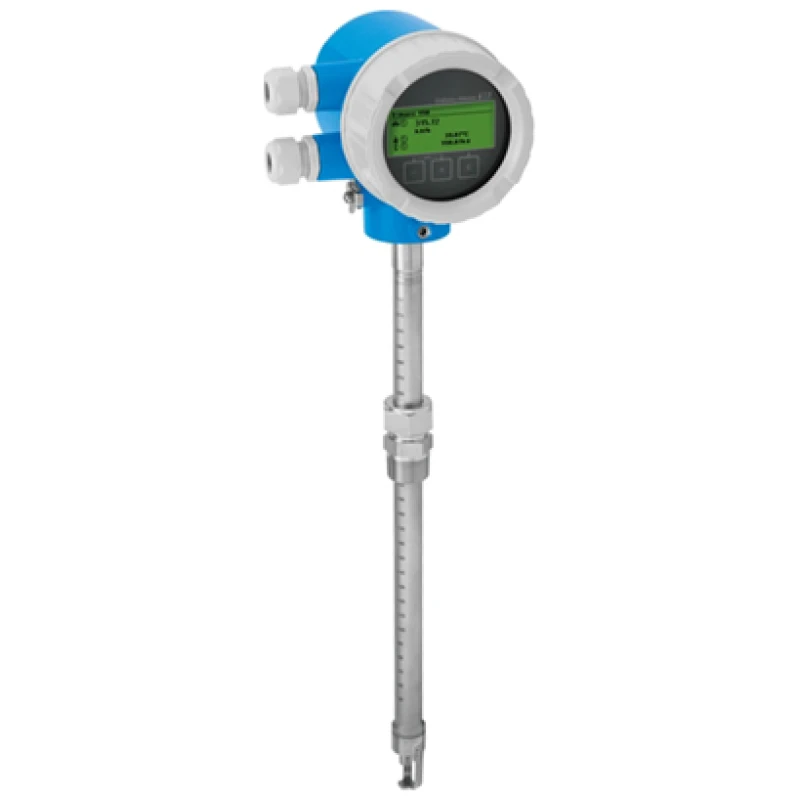

E+H Proline T-Mass B 150 Thermal Mass Flow Meter

Name: E+H Proline T-Mass B 150 Thermal Mass Flow Meter - scs-instrument
Brand: Endress+Hauser
SKU: Proline t-massB150

E+H Proline T-Mass B 150 Thermal Mass Flow Meter is designed for cost-effective measurement and easy monitoring of utility gases, particularly compressed air. It operates on the thermal measurement principle, where the flow of gas cools a heated sensor, allowing for direct mass flow measurement. This flow meter is suitable for large pipelines or rectangular ventilation ducts, with a measuring range of 20 to 720,000 kg/h (45 to 1,587,600 lb/h) and a maximum process pressure of 20 bar g (290 psi g). It can operate in a medium temperature range of -40 to +100 °C (-40 to +212 °F) and features a compact design with robust materials for durability. The T-Mass B 150 is ideal for applications involving air, nitrogen, carbon dioxide, and argon, providing reliable performance with minimal maintenance requirements. The product is available at scs-Instrument store.

GET A QUOTE

Category: Thermal Mass Flow Meters Tag: Endress+Hauser

Description

E+H Proline T-Mass B 150 Thermal Mass Flow Meter Description

The Endress+Hauser Proline T-Mass B 150 is a thermal mass flow meter designed for cost-effective measurement of utility gases, particularly compressed air. This insertion-style flow meter is suitable for large pipelines and rectangular ventilation ducts, featuring 4-wire technology housed in a rugged compact aluminum housing. The device enables direct mass flow measurement with minimal maintenance requirements and negligible pressure loss.

Key Features

Advanced Design

Insertion version for DN 80 to 1500 (3 to 60″)
Installation and removal without process interruption
Customer-specific settings saved on transferable display
Compact and robust aluminum transmitter housing
Easy installation with guided menus

Performance Excellence

Direct mass flow measurement
Measurement accuracy up to 3% of reading
Wide measuring range: 20 to 720,000 kg/h
Operating temperature: -40 to +100°C
Process pressure up to 20 bar g

Specifications and Parameter Details

Parameter	Specification
Measuring Range	20 to 720,000 kg/h (45 to 1,587,600 lb/h)
Accuracy	3% to 5% of reading (depending on calibration)
Temperature Range	-40 to +100°C (-40 to +212°F)
Process Pressure	Up to 20 bar g (290 psi g)
Wetted Materials	Transducer: 316L Insertion tube: 316L Sealing ring: EPDM, HNBR
Output Options	4-20 mA HART (active) Pulse/frequency/switch output (passive)
Power Supply	DC 18 to 30V
Protection Rating	IP66/67, Type 4X enclosure

Applications

Process Industries

Compressed air monitoring
Industrial gas measurement
Utility gas applications
Sub-metering systems
Gas network monitoring

Technical Documentation

The Endress+Hauser Proline T-Mass B 150 represents an economical solution for utility gas flow measurement applications. Its insertion design and comprehensive measurement capabilities make it the ideal choice for gas monitoring systems. For expert guidance on Flow Meters, Thermal Mass Flow Meters, and Endress+Hauser products, trust scs-instrument. We provide 100% original, factory-new instrumentation to ensure the highest quality and reliability for your applications. Contact our technical team today to discover how our comprehensive range of flow measurement solutions can optimize your process control systems.
