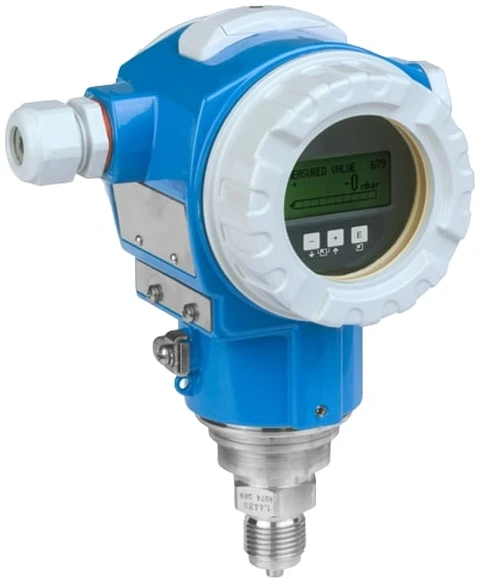

E+H Cerabar PMP71 Gauge/Absolute Pressure Transmitter

Name: E+H Cerabar PMP71 Gauge/Absolute Pressure Transmitter - scs-instrument
Brand: Endress+Hauser
SKU: E+H Cerabar PMP71

The E+H Cerabar PMP71 Gauge/Absolute Pressure Transmitter is a digital pressure transmitter designed for precise measurement of gauge and absolute pressure in gases, liquids, and steam across various industrial applications. It operates using a piezoresistive sensor with a welded metallic membrane, providing high accuracy of ±0.05% and an optional platinum version offering ±0.025% accuracy. The transmitter supports a wide measuring range from -1 to 700 bar (-15 to 10,500 psi) and can withstand process temperatures from -40 to +125 °C. Its robust design ensures reliability in demanding environments, making it suitable for industries such as oil and gas, chemical processing, and water treatment. The PMP71 is also designed for use in SIL2/3 safety systems and is available with MID Parts Certificate for custody transfer applications. The product is available at scs-Instrument store.

GET A QUOTE

Categories: Absolute Pressure Transmitters, Gauge Pressure Transmitters, Pressure Transmitters Tag: Endress+Hauser

Description

E+H Cerabar PMP71 Gauge/Absolute Pressure Transmitter

The E+H Cerabar PMP71 is a high-precision digital pressure transmitter with metallic membrane designed for absolute and gauge pressure measurements. This advanced device features a piezoresistive sensor with welded metallic membrane for demanding process applications.

Key Features

Advanced Technology

Piezoresistive sensor with welded metallic membrane
HistoROM data management concept
Quick Setup with adjustable measuring range
Secondary process barrier
Enhanced safety via self-diagnostic functions

Performance Excellence

Accuracy: Standard ±0.05%, Platinum version ±0.025%
Long-term stability: 0.05% URL/year
Turn down ratio up to 100:1
SIL2/3 certification according to IEC 61508
Overload resistance up to 1050 bar

Technical Specifications

Parameter	Specification
Measuring Range	400 mbar to 700 bar (5.8 psi to 10,500 psi)
Process Temperature	-40 to +125°C (-40 to +257°F)
Ambient Temperature	-50 to +85°C (-58 to +185°F)
Housing Material	Die-cast aluminum or AISI 316L
Wetted Materials	316L, Alloy C276, Rhodium
Protection Rating	IP66/IP67

Applications

Process Industries

Pressure measurement in gases, steams, or liquids
Level, volume, or mass measurements
High-pressure applications
Custody transfer applications
Safety instrumented systems

Technical Documentation

Elevate your process control capabilities with the E+H Cerabar PMP71, where advanced sensor technology meets exceptional measurement precision. For specialized expertise in Absolute Pressure Transmitters, Gauge Pressure Transmitters, and Endress+Hauser products, partner with scs-instrument. Our commitment to delivering 100% original, factory-new instrumentation ensures optimal performance for your most demanding pressure measurement applications. Let our technical experts guide you toward achieving new levels of measurement excellence in your operations.
